SR-R-RP1300 Model Series Double Wide-belt Sander

SR-R-RP1300 Model Series Double Wide-belt Sander

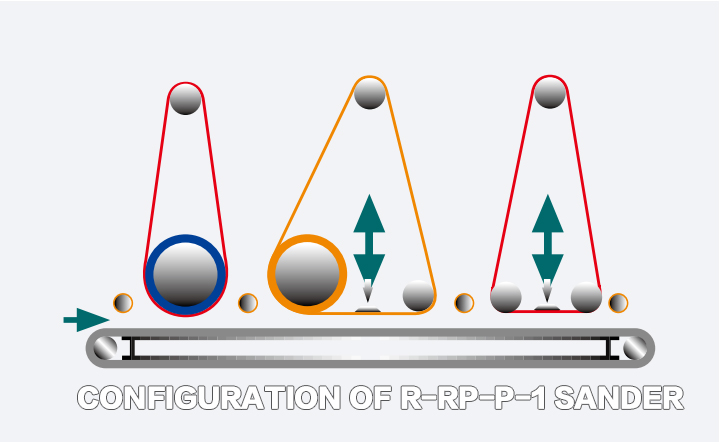

BSG R-RP-P1300-1 is mainly used for rough sanding of plywood , flake board , MDF etc..

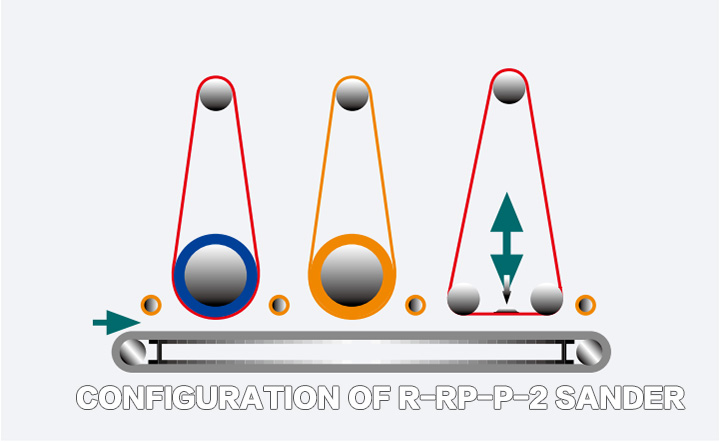

BSG R-R-P 1300-2 is mainly used for rough sanding of integrated timber, solid board, artificial board, etc.

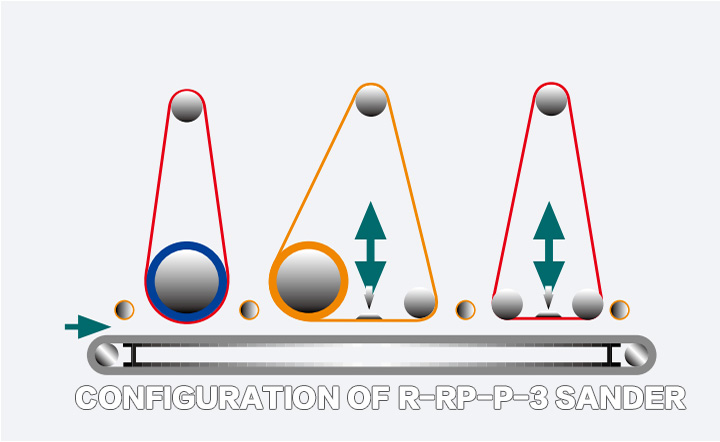

BSG R-R-RP 1300-3 is mainly used for fine sanding of MDF, plywood, flake board etc.

Adopting foundry frame, the sanding units can not be distorted easily and have good effect of vibration & absorption.

Fault display makes maintenance and repair easy. When fault happens, the machine will be powered off, brake, the table fall and protect workpieces from being damaged.

PLC is used to control the sanding belt swing and thickness display, which guarantees the anti-jamming function of the machine.

Product Details

Type	BSGR-RP-P1300-1	BSGR-R-P1300-2	BSGR-RP-P1300-3
Working Width	40~1300mm	40~1300mm	40~1300mm
Working Thickness	2.5~100mm	2.5~100mm	2.5~100mm
Working Length	≥630mm	≥500mm	≥630mm
No.1 Sand Belt Speed	21m/s	21m/s	21m/s
No.2 Sand Belt Speed	18m/s	21m/s	21m/s
No.3 Sand Belt Speed	12m/s	12m/s	18m/s
Feed Speed	6~30m/min	6~30m/min	6~30m/min
Size of Sand Belt (W×P)	1330×2200mm	1330×2200mm	1330×2200mm
Total Motor Power	88.62KW	88.62KW	95.62KW
Main Motor	37KW/30KW/15KW	37KW/30KW/15KW	37KW/30KW/22KW
Working Air Pressure	0.55MPa	0.55MPa	0.55MPa
Consumption of Compressed Air	0.2m3 /min	0.2m3 /min	0.2m3 /min
Volume of Sucked Air	12000m3 /h	12000m3 /h	12000m3 /h
Speed of Sucked Air	25~30m/s	25~30m/s	25~30m/s
Overall Dimension(L×W×H)	2625×2680×2130mm	2625×2680×2130mm	2625×2680×2130mm
Net Weight	4700kg	4700kg	4800kg
